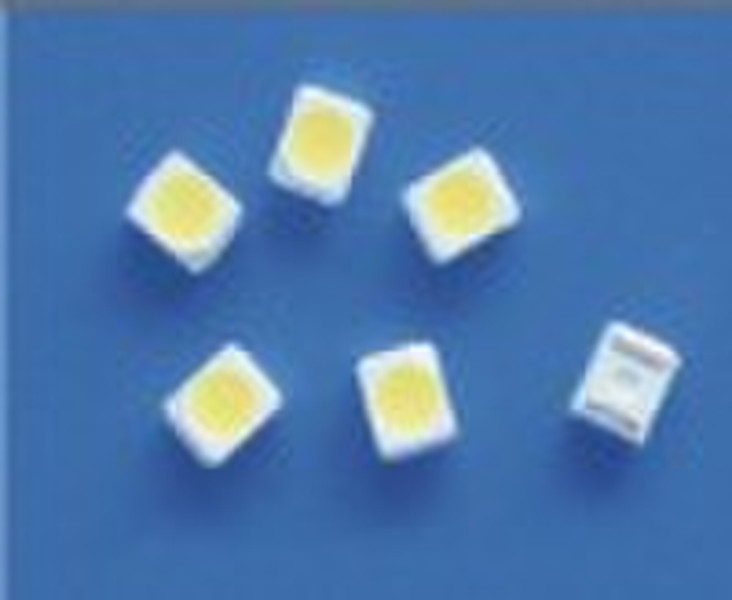

3528 smd led

3528 smd led,3528 top led,plcc smd detailed product description 1)size:3020,5050,3528 2)high intensity,reliability and long life 3)RoHS Compliant Main Description: 1)standared 3528 super bright TOP LED 2)Yellow diffused silicone resin 3)Taiwan EPISTAR coprporation 10*23mil InGaN chips 4)High intensity,reliability and long life 5)Enviromental friendly,RoHS compliant 6)Widely used in lighting area Electro&optical characteristics{If=20mA,Ta=25C} 1)Forward voltage:3.0 3.5V 2)Luminous flux:5.5 7.0lumens 3)Beam color white,2700K 8000K available 4)Viewing angle:110 130 degree 5Iv attenuation :less than 10% after 1000hour aging test Absolute Maximum Ratings 1)Reverse voltage:>7v lr=10uA 2)DC forward current:<25mA 3)Power dissipation:<100mW 4)Pulse forward voltage:<100mA duty<1/10,0.1ms 5)Operating Temperature range:-40 100 degree packaging 1)2k pcs/reel & antistatic bag 2)small carton:240(L)*280(w)*90(H)mm &10k/carton 3)Middle carton:420(L)*280(w)*180(H)mm &20k/carton 4)Large carton:420(L)*280(w)*360(H)mm &40k/carton CAUTION 1)Warning:care must be taken when viewing the product at closed range as the light may be intense enough to cause damage to eye. 2)Note:Industry standard procedures regarding static must be ovserved when handing the product Electro-Optical Characteristics (Ta=25 degree) Part NumberChip Material Emitted ColorCCTTypResin ColorIv(mcd)@IF=20mAVF(V)@IF=20mAViewing AngleMinTypMaxTypMaxZX3020-1/C1-56702628C(2)InGaNCalm White6300KWater Clear1500200023003.23.5120ZX3020-1/N1-45562629C(2)InGaNNatural White5000KWater Clear1500200023003.23.5120ZX3020-1/W1-28322528C(2)InGaNWarm White3050KWater Clear1250175021503.23.5120
